Firewall Bracket

Solar cables durable and safe over compartment walls

RoofSupport Firewall Bracket is a tecnical solution for easy laying of DC cables over compartment walls. The accompanying FireWrap, a fire-resistant sleeve that is wrapped around the cabling, offers 60 minutes resistance to fire penetration in the cables over the fire wall. In short: solar cables durable and safe over compartment walls.

Brandwandbeugel (1) Go to products

There is a need from the market to create a safe transition for solar cables over compartmentation walls. These walls protrude half to a full metre above the roof surface, making it easy to hang the firewall bracket over them; simply and without mechanical fixation, to prevent damage to the firewall.

Why a Firewall Bracket with corresponding FireWrap?

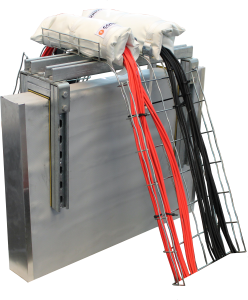

  • Protection of the PVC roof layer without mechanical fixationthe the Firewall Bracket is hung over the compartmentation walls.Brandwandbeugel over brandwand
  • Ease of installation the Firewall Bracket is delivered project specific and can easily be installed in the right place.
  • Hot-dip galvanised according to NEN-EN_ISO1461.
  • Seamless connection between the Firewall Bracket and our RoofSupport cable duct; the ideal combination!
  • Combine with FireWrap the insulation cover delays the fire spread from compartment to compartment (minimum 60 minutes according to ISO 834).
  • Simple FireWrap is easily and securely attached using three tensioning straps.



It is possible to deliver project-specific solutions; please contact us for more information.



Click on the video below for more information about the Firewall bracket and Firewrap:



View the documentation of, among others, RoofSupport Fire Wall Bracket here.
