PVtube

Routing solar panel cabling is now fire-safe and airtight with PVtube

Once through the roof, the cables must be fed into a cable duct or pipe to the inverter. Since this is preferably done behind the knee board, it is important to ensure that this is done separately. It is therefore advisable to route the PLUS and MINUS cables separately through a hostalite tube.

Why PVtube?

  • Prevents damage to cables due to mechanical stress
  • Contributes to fire safety due to separate conduit
  • Double insulation prevents thermal bridge
  • Available as a single basic set







The solution for fireproof and airtight routing of solar panel cables

Basic sets

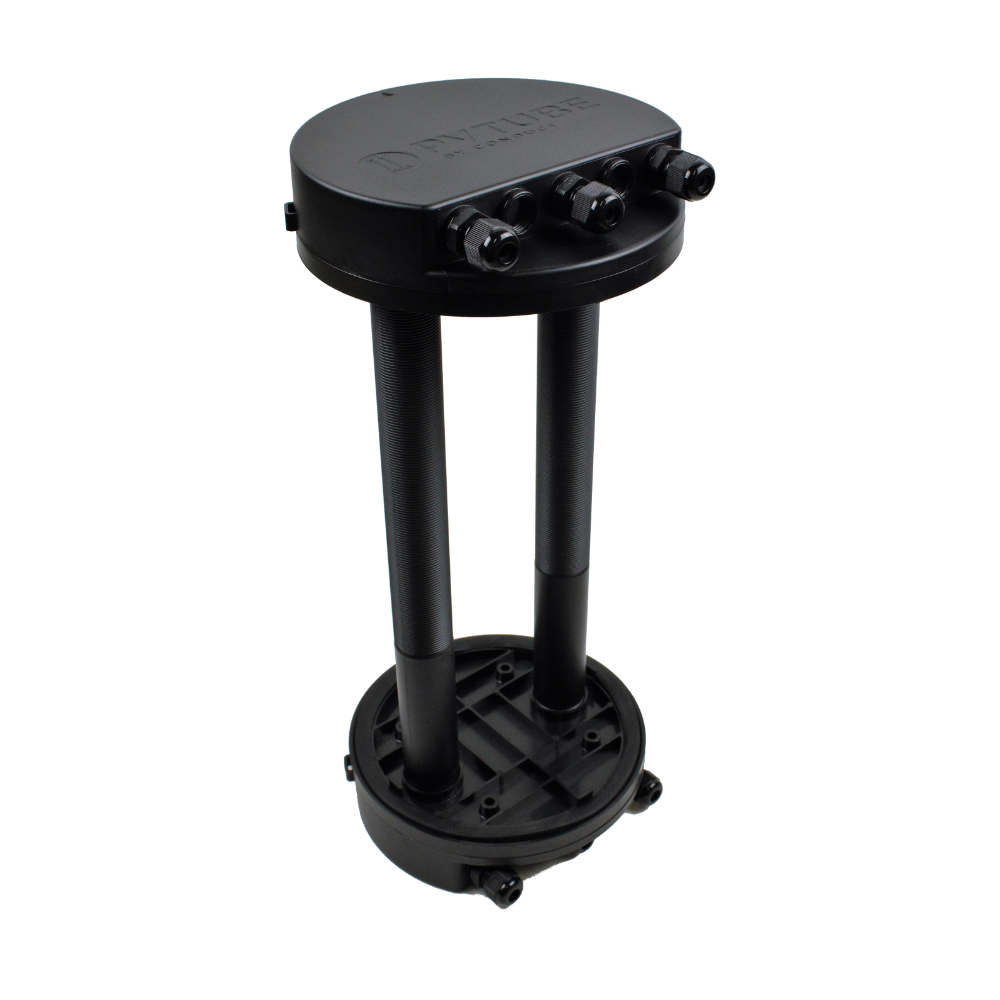

PVtube for 1 to 2 strings

Artno. PVT-1S

  • 2 grommet caps with glands
  • 2 tubes
  • 2 baseplates



Productafbeelding PVtube ACPVtube for 1 YMVK M20

Artno. PVT-AC

    • 2 grommet caps with glands AC
  • 2 tubes
  • 2 baseplates

Additional sets

Flat roof adapter set

Artikelnummer: PVT-1S-FRS

  • All components in one set
  • The adapter is specifically designed for installing PVtube on flat roofs, in accordance with NPR5310.



Accessories

For mounting and insulating PVtube, we have the following accessories in our range:

FlatRoof_ (1772x1772)PVtube FlatRoof adapter

Artno. PVT-FLATROOF

  • The adapter is specifically designed for installing PVtube on flat roofs.
  • PVtube is the solution for the air and watertight routing of cabling through the flat roof.



Productafbeelding PVT-GPNEW: PVtube graphite board 150mm

Artno. PVT-GP

  • Fire retardant, when heated to at least 180 degrees Celsius the graphite sheet expands.





PVtube isolation cylinder

Artno. PVTR152

  • Applicable for a borehole of 152mm
  • Fire class A1 (non-flammable up to 1000°C)



PVtube drill bit including adapter and pilot drill bit, ø152mm

Artno. PVTB152

  • Not suitable for drilling into abrasive materials, stone and concrete.
  • Use only on a drill with side handle.
  • Use only in a clockwise direction, use in a counter-clockwise direction will damage the teeth



PVtube auger bit

Artikelno. PVTB35







PVtube adapter for auger bit

Artno. PVTB35ADAP









PVtube manchet

Artno. PVTM35

For an airtight finish for flexible roofing.





View the documentation of PVtube here
