PVtile

roof tile lead-through

PVtile provides a weatherproof installation of cables through the roof tiles in accordance with NEN1010:2020 section 522.8. The universal base plate fits perfectly under roof-mounted solar panel systems, on a wide range of roof tile types. Flexible mounting strips on the sides allow for easy, weather-resistant installation of the universal base plate.

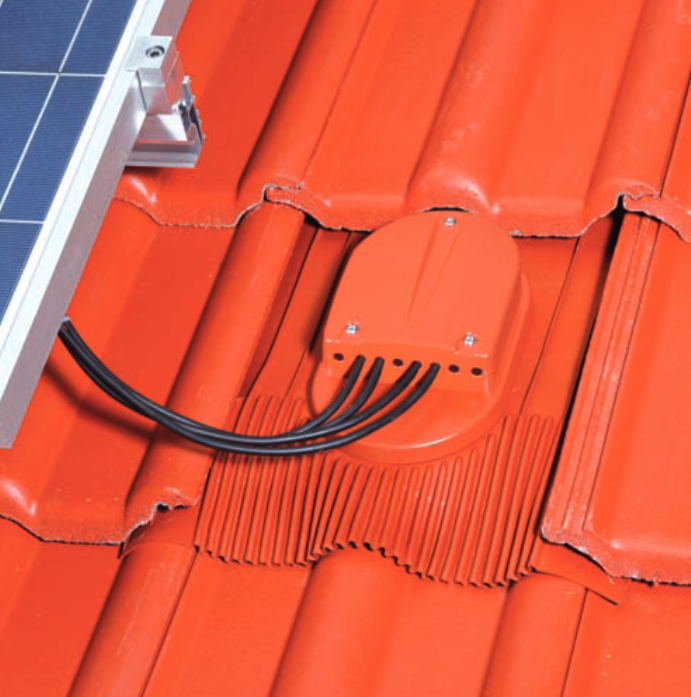

PVtile in dak View products

Product features and benefits

  • Throughput in accordance with NEN1010:2020 section 522.8
  • Weatherproof pass-through for up to 8 cables
  • Safe and easy to install
  • Geschikt voor de meest gangbare kabeltypes, zoalsantenne- of lampkabels
  • Optimal sealing with an additional foam strip
  • Made of solid UV-resistant PVC
  • Tested in the wind tunnel

Application

Suitable for:

  • Cable diameters of 4 – 8 mm
  • Roof pitches from 16° to 65°
  • Most interlocking clay and concrete roof tiles

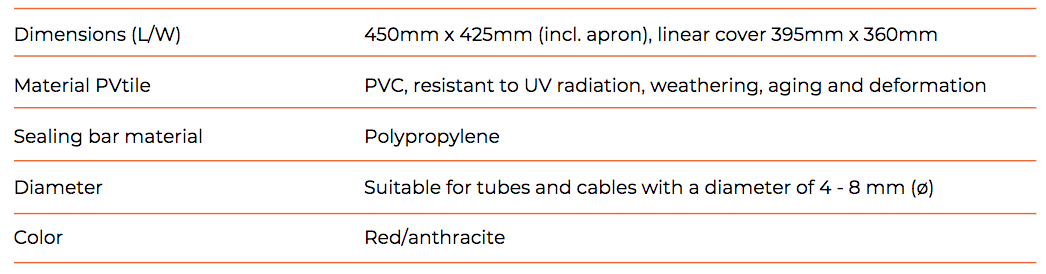

Technical Data



Use PVtile in combination with PVtube for an optimally airtight and durable passage of solar cables.
