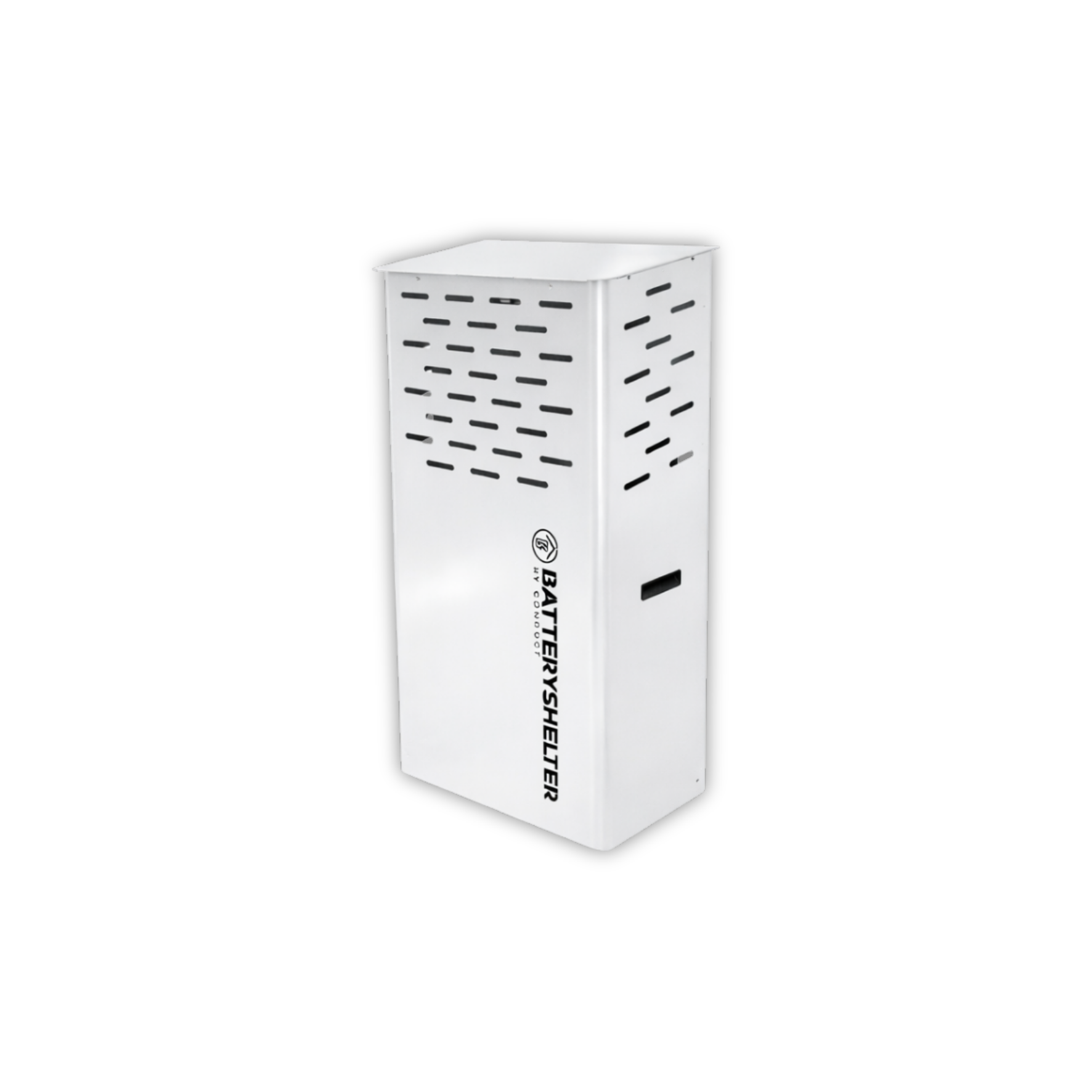

Batteryshelter type 55110 Traffic White (RAL 9016)

BS051125-2-9016



Would you like to place an order?

You can order our products through any of our distribution partners or contact our sales department.

Find distributor

Batteryshelter type 55110 Traffic White (RAL 9016) | Outdoor enclosure for home batteries (ESS)



Internal dimensions for ESS installation:
Width: 550 mm
Height: 1100 mm (rear side)



Safe outdoor enclosure for home batteries.
The Battery Shelter is a durable, fire-safe outdoor enclosure for home batteries (ESS). This robust shelter is manufactured from Magnelis® steel, a metal with exceptional corrosion resistance and a long service life, making it ideal for humid and coastal environments.



The Batteryshelter is available in four standard finishes:

  • Magnelis® steel
  • Powder coating in façade colours: copper brown (RAL 8004), traffic white (RAL 9016), and anthracite grey (RAL 7016).

The coating system is constructed in accordance with ISO 12944 (C3) and visually integrates with modern façade architecture, including the most commonly selected façade styles used by Groothuisbouw and BMN Bouwmaterialen.



Fire-safe and well-ventilated design
The enclosure is equipped with perforated front and side slots that enable natural airflow (free convection). Heat, smoke, and potential flames are discharged sideways, away from roof edges and wooden structures. In the event of thermal runaway, the battery cells remain safely contained within the shelter, preventing cell propagation and minimising damage to the surrounding environment.



Protected against access and weather conditions
The lockable cover protects the battery against theft and unauthorised access. The construction is easy to assemble and open using standard tap bolts, while two additional anti-theft locking bolts provide burglary resistance. Thanks to its IP12 and IK10 design, the Battery Shelter is resistant to rain and heavy impact.



Simple and secure façade installation
Installation on the façade is carried out easily using ETA-approved fischer construction plugs. By mounting the system at least 30 cm above ground level, the home battery remains protected from water, dirt, and the effects of ground settlement.



For specific questions about compatibility or technical connection options, please contact sales@conduct.nl



View the Batteryshelter documentation here



Specifications
Depth 380 mm
Width 650 mm
Rear height 1190 mm
Front height 1140 mm
Material Magnelis®-staal
Load capacity 220 kg
Weight 32 kg
Material thickness 1,5 mm
Earthing Dehn K12 vereffeningsrail(CE, DEHN en VDE gecertificeerd)
IP/IK Ontworpen voor IP12 / IK10
Anchoring Fischer constructieplug SXRL 10 x 80 FUS zeskantkop
ETA certificering ETA-07/0121 – fischer constructieplug
Ventilation Geperforeerde front- en zijpanelen met horizontale sleuven
Temperature range 1400-1500 °C
RAL colour 9016
