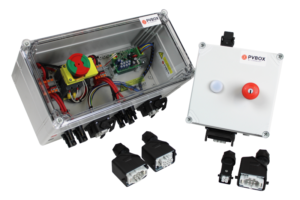

FireSwitch

With this fire switch you can switch up to 5 strings with one action from the switch box at the entrance of the building. By adding a PV box distribution box, multiple strings can be switched. By also adding overvoltage protection, you have the total solution!

With the PVbox Fireswitch, Conduct offers the ideal solution for a safe disconnection of the DC circuit. This creates a safe situation for fire fighters, because the dangerous DC voltage is disconnected. Often a property can be saved even before it “breaks”.
FireSwitch

With this fire switch you can switch up to 5 strings with one action from the switch box at the entrance of the building. By adding a PV box distribution box, multiple strings can be switched. By also adding overvoltage protection, you have the total solution!

Why PVbox FireSwitch?

  • Switches off the DC voltage at the PV panels
  • Switches DC due to AC voltage failure or by centrally located hand control
  • Multiple emergency stops applicable
  • 1-5 strings (per MPPT) versions
  • Optionally expandable with Type 1+2 SPDs

Different models of FireSwitch

FS 1IN.1OUT  Specifications: FS.1.MC4.pdf

FS 2IN.2OUT Specifications: FS.2.MC4.pdf

FS 3IN.3OUT Specifications: FS.3.MC4.pdf

FS 4IN.4OUT Specifications: FS.4.MC4.pdf

FS 5IN.5OUT Specifications: FS.5.MC4.pdf
